ControlAPI::DeviceController Class Reference

Base Class For Controlling Devices. More...

#include <HC_API.h>

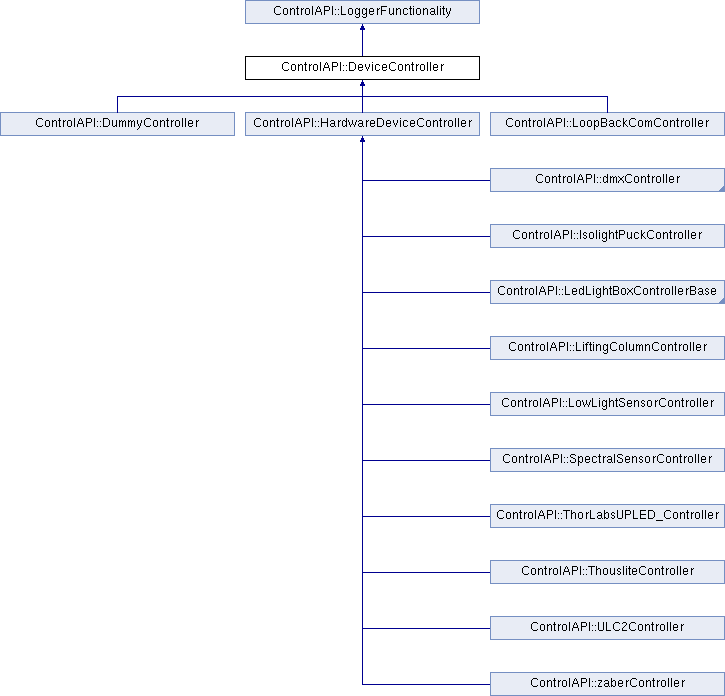

Inheritance diagram for ControlAPI::DeviceController:

Public Member Functions

virtual std::string className () override

virtual bool checkCommandPackage (int deviceId, DeviceCommandPackage *package)
 check validity of command package

void addDeviceInfo (DeviceInfo *dev)
 Add a device to the controller. More...

void removeDeviceInfo (DeviceInfo *dev)
 Remove an already added device.

void setDisconnectCallback (std::function< void(bool)> callback)
 set a disconnected callback function to be called when the controller is disconnected.

virtual void disconnect (bool expected=false)
 disconnect the controller, should handle both a manual disconnect and could be called from a comm error disconnect. set expected to false if called from a timeout error or unknown disconnect event. - error messages are printed. set expected to true if a manual disconnection is wanted.- info messages are printed.

bool isConnected ()
 returns true if the controller is currently connected.

int apiId ()
 the assigned Api Id of the controller

void setSimulated (bool simulated)
 set the simulated flag on the controller - simulated controllers can simulate interaction with attached devices. can only be set before the controller is initialized. More...

bool isSimulated ()
 return if the controller is simulated. More...

- Public Member Functions inherited from ControlAPI::LoggerFunctionality
std::shared_ptr< spdlog::logger > getLogger ()

std::string loggerName ()


Static Public Member Functions

static std::string staticClassName ()

- Static Public Member Functions inherited from ControlAPI::LoggerFunctionality
static std::string staticClassName ()


Public Attributes

std::string alias
 Alias of the controller.

std::string port
 port for connecting, if the device is a serial device this can be "COM3" or "/dev/tty.***"


Friends

class DeviceInfo

class ControlSystem


Additional Inherited Members

- Protected Attributes inherited from ControlAPI::LoggerFunctionality
std::shared_ptr< spdlog::logger > logger

ControlSystem * controlSystem = nullptr


Detailed Description

Base Class For Controlling Devices.

Member Function Documentation

◆ addDeviceInfo()

void ControlAPI::DeviceController::addDeviceInfo (DeviceInfo * dev)

Add a device to the controller.

Parameters
dev

◆ isSimulated()

bool ControlAPI::DeviceController::isSimulated ()

return if the controller is simulated.

Returns

◆ setSimulated()

void ControlAPI::DeviceController::setSimulated (bool simulated)

set the simulated flag on the controller - simulated controllers can simulate interaction with attached devices. can only be set before the controller is initialized.

Parameters
simulated
The documentation for this class was generated from the following file:
